Description
The 1014_2B Phidget Interface Kit 0/0/4 Provides a convenient way to interface your PC with various higher-voltage devices such as incandescent bulbs, high-power relays, and motors
Note: The 1014_2B is identical to the 1014_2, except that you have the option of whether you want to include the USB cable.
The 1014_2B Phidget Interface Kit 0/0/4 allows you to control high power devices such as incandescent light bulbs, fans, and pumps by electronically switching power on and off.
The 1014 has 4 Relay Outputs for switching AC or DC power; the relays are Single Pole Double Throw (SPDT).
Note: This board is not suitable for switching signals. It takes at least 100mA of current to bridge the oxide layer that forms on the relay contacts, and most signals will not meet this requirement. If you need to switch signals, check out the 1017 – PhidgetInterfaceKit 0/0/8.
1014_2B Phidget Interface Kit 0/0/4 comes Packaged with
- A Hardware mounting kit (4 nuts and bolts (M3), 4 plastic spacers)
Product Specifications of 1014_2B Phidget Interface Kit 0/0/4
| Physical Properties | |
|---|---|
| API Object Name | InterfaceKit |
| Switch Type | SPDT |
| Switching Speed Max | 20 cpm |
| Recommended Wire Size | 12 – 24 AWG |
| Operating Temperature Min | 0 °C |
| Operating Temperature Max | 70 °C |
| Board Properties | |
| Controlled By | USB (Mini-USB) |
| API Object Name | DigitalOutput |
| Electrical Properties | |
| Dielectric Strength | 1.5 kV AC |
| Contact Resistance Max | 120 mΩ |
| Load Voltage Max (DC) | * 30 V DC |
| Load Voltage Max (AC) | 277 V AC |
| Load Current Min | 100 mA |
| Load Current Max (DC) | 7 A |
| Load Current Max (AC) | 12 A |
| Turn-on Time Max | 10 ms |
| Turn-off Time Max | 10 ms |
| Current Consumption Min | 14 mA |
| Current Consumption Max | 300 mA |
| USB Speed | Low Speed |
*Note: Switching this relay at voltages higher than 30V will result in a reduced product lifespan.
Please Note: This relay cannot be switched at its maximum AC voltage and current at the same time. Ensure that total power of the load does not exceed the switching power for the relay. For example, you can switch this relay at 277V AC and 6.3A (1750VA), or at 145V AC and 12A (1750VA), but not at 277V and 12A (3324VA).
Estimated Relay Lifespan

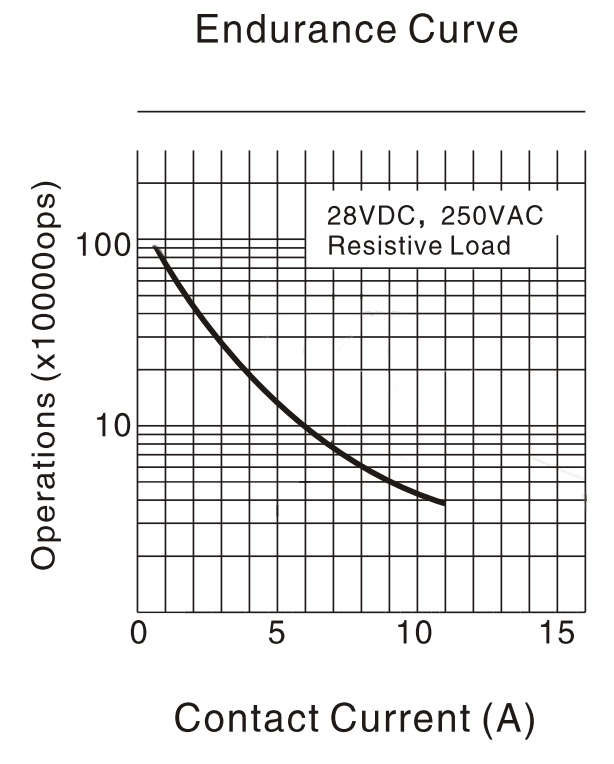

The lifespan of the relays on this Phidget vary depending on how much current you’re switching and whether it’s AC or DC. The following graph illustrates the relationship between load current and relay lifespan:
The vertical axis is the lifespan of the relay (number of actuations) and the horizontal axis is load current in amps. As you can see, increasing load current from 5A to 10A can reduce relay life by more than half.
